3D Laser Site Scanning

Isoma offers detailed site surveys for use within our designs and for design reviews both internally and on site with our clients. ​We utilise the latest laser scanning equipment as part of our service for projects of all sizes.



Laser scanning allows the mass capture of information within a factory very quickly compared to traditional surveying techniques. It is also highly accurate and can be referenced within our software to create 3D models alongside the point cloud information.

​

Surveying:

​

• Laser scan surveys produce 3D point clouds for use in 3D modelling packages.

• Laser scanning is fast, efficient, non-intrusive and cost-effective.​

• It ensures the seamless integration of equipment.

• Installation work can be optimised, having already identified problematic areas with early scanning.

• Surveys can be carried out in all of our sectors including pharmaceutical, food and beverage and warehousing.

​​​​

3D Site Models:

​

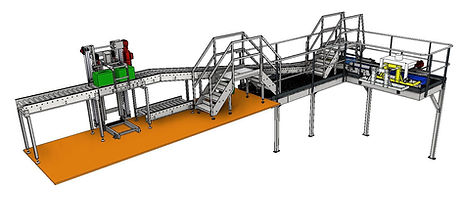

• We produce 3D models of existing sites including equipment and civil structures.

• Clash detection is essential for new and existing equipment to minimise errors in design and manufacture.

• Site scans can be used for reviewing access and safety on site.

​​

2D Site Layouts:

​

• Using laser scanning information to create new or 'as built' plan layouts in AutoCAD.

• The modification of existing site layouts to include new equipment and civils work.​

• Proposal drawings are created from existing drawings and scans.​

​

Digital Twins:

​

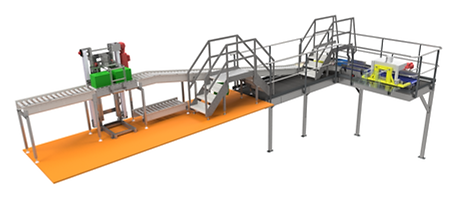

• From a comprehensive laser-scanned environment, a 3D virtual representation of the conveyor or packaging line can be created.

• Facility and asset management (lifecycle management) is made possible by capturing existing information for use in maintenance.

• A digital twin can be used for simulation and analysis, testing, monitoring and improving efficiencies.
